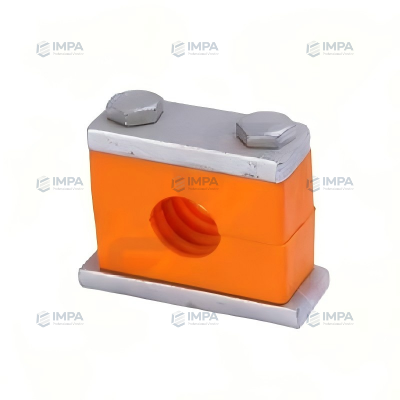

Heavy Duty Plastic Pipe clip

We supply Reducing Pipe/Head/Pipe Clip, select your favorite Marine Hardware/Tools/Bearing to send us an inquiry email or leave us a message, we will contact you within 24 hours, for your quotation.

• Origin: Langfang, HebeiShipping Packaging method: Carton Packaging jacket woven bags, plastic bags, fumigation-free European pallets, can also be customized according to the requirements.
  Category: Heavy pipe clamp
  Material Material: carbon steel/stainless steel/Polypropylene
  Bolt performance Level: Level 4.8 5.8 level 8.8 level 10.8 level 12.8
  Processing customization: Yes (to map machining, sample processing, processing)
  Specification model: According to customer needs
  Color: Green, red, black (can be customized according to customer requirements)
  Anticorrosion Treatment/Surface Treatment: White zinc plating, galvanized zinc, hot-dip galvanizing, hot-dip zinc, nickel plating, chrome plating, Clomiphenol, Blackening, Dacrome, Teflon, spray paint, spraying, polishing.
  Coating Thickness: 50-80UM
  Service life: 3-5 years, according to the use of the environment.
  Product Shape: Square
  Storage method: Store in a dry place, do not stack in a cold and humid place, to avoid rust or oxidation of the product. Implementation standard: DIN3015 Sideford standard

Product Description:

Heavy Duty Series tube clamp is suitable for 11 sizes of high mechanical pressure piping, pipe outer diameter 6-508mm. Heavy duty Plastic Pipe clamp material is polypropylene, code-named PP. Polypropylene non-toxic tasteless molding good, pipe clamp surface gloss is good, with good mechanical properties. The most prominent properties of polypropylene are flexural fatigue, with a dry friction coefficient similar to that of nylon, but not as good as nylon under lubricating oil. The product structure is simple and rugged, is the preferred part of pipeline fixed construction.

Detailed Introduction

Product Features:

 Product and material composition: Bolts: Carbon steel (Level 4.8 or 8.8)/stainless steel (XUS304 or XUS316) cover: Carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)

Pipe clamping Body: PP/PA/AL/Q235/SS304/XS316 welded bottom Plate: carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Rail nuts: Carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Mounting rails: Carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Operating temperature: plastic Pp-30℃to+90℃; nylon Pa-40℃to+120℃; aluminum alloy Al-80℃to+300℃; steel Q235a-80℃to+500℃; stainless steel Ss304/ss316-80℃to+500℃. Application areas: This product is suitable for metallurgical, petroleum, chemical, vehicle, ship, electric power and other mechanical hydraulic systems in the oil, water, gas as a medium fixed pipe.
Heavy Duty Series tube clamp is suitable for medium and high voltage (PN≤31.5Mpa) pipe fixing.
