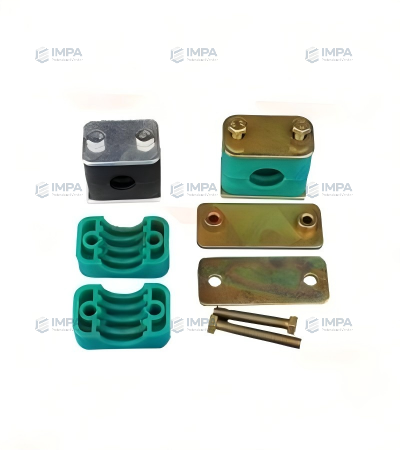

Lightweight Plastic Pipe Clip

We supply Reducing Pipe/Head/Pipe Clip, select your favorite Marine Hardware/Tools/Bearing to send us an inquiry email or leave us a message, we will contact you within 24 hours, for your quotation.

 Product and material composition: Bolts: Carbon steel (Level 4.8 or 8.8)/stainless steel (XUS304 or XUS316) cover: Carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)

Pipe clamping Body: PP/PA/AL/Q235/SS304/XS316 welded bottom Plate: carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Rail nuts: Carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Mounting rails: Carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Operating temperature: plastic Pp-30℃to+90℃; nylon Pa-40℃to+120℃; aluminum alloy Al-80℃to+300℃; steel Q235a-80℃to+500℃; stainless steel Ss304/ss316-80℃to+500℃. Application areas: This product is suitable for metallurgy, petroleum, chemical industry, vehicles, ships, electricity and other mechanical hydraulic systems in the oil, water, gas as a medium fixed pipe.
Lightweight Series tube clamps are suitable for medium and low voltage (PN≤8Mpa) pipe fixing.

• Lightweight Series Tube Clamp is suitable for 6 sizes of ordinary mechanical pressure pipe, pipe outer diameter 6-102mm. Lightweight plastic Pipe clamp material is polypropylene, code-named PP. Polypropylene non-toxic tasteless molding good, pipe clamp surface gloss is good, with good mechanical properties. The most prominent properties of polypropylene are flexural fatigue, with a dry friction coefficient similar to that of nylon, but not as good as nylon under lubricating oil.
  The product structure is simple and rugged, is the preferred part of pipeline fixed construction.
