steellabWe supply Reducing Pipe/Head/Pipe Clip, select your favorite Marine Hardware/Tools/Bearing to send us an inquiry email or leave us a message, we will contact you within 24 hours, for your quotation.
| Characteristics | Polypropylene | Nylon |
| DensityBending strengthImpact toughnessCompression strengthElastic modulusTensile strengthTemperature resistantColor | 0.906g/cm2 36N/mm2 no bteak 90N/mm2 1500N/mm2 25-35N/mm2 -30… 90 ℃ Green, Blue | 1.12-1.15g/cm3 130…200N/mm2 不断 no bteak 120N/mm2 3000N/mm2 80-90N/mm2 -40… 120 ℃ Black |
- Product and material composition:
Bolts: Carbon steel (Level 4.8 or 8.8)/stainless steel (XUS304 or XUS316)
Cover PLATE: Carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Pipe clamping Body: PP/PA/AL/Q235/SS304/XS316
Welded bottom PLATE: carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Rail nuts: Carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Mounting rails: Carbon steel (galvanized or phosphating)/stainless steel (XUS304 or XUS316)
Operating temperature: plastic Pp-30℃to+90℃; nylon Pa-40℃to+120℃; aluminum alloy Al-80℃to+300℃; steel Q235a-80℃to+500℃; stainless steel Ss304/ss316-80℃to+500℃. Application areas: This product is suitable for metallurgy, petroleum, chemical industry, vehicles, ships, electricity and other mechanical hydraulic systems in the oil, water, gas as a medium fixed pipe.

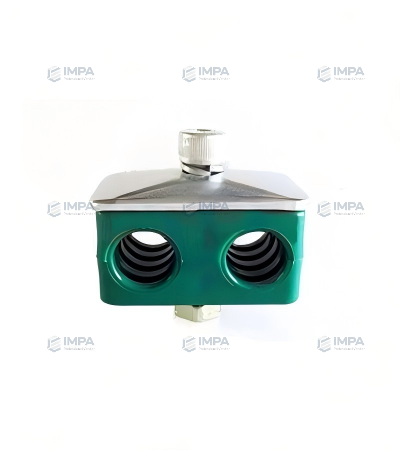

The Duplex Series tube clamp is suitable for medium and low voltage (PN≤8Mpa) pipe fixing.
